Cotton Yarn Computer Lace Textile Machinery

  • Cotton Yarn Computer Lace Textile Machinery
  • Cotton Yarn Computer Lace Textile Machinery
  • Cotton Yarn Computer Lace Textile Machinery
  • Cotton Yarn Computer Lace Textile Machinery

Cotton Yarn Computer Lace Textile Machinery

    Min. Order: 1 sets
    Brand: xinglong
    Transportation: Ocean,Land
    Supply Ability: 1000sets/Year
    Port: Shanghai

Product Description

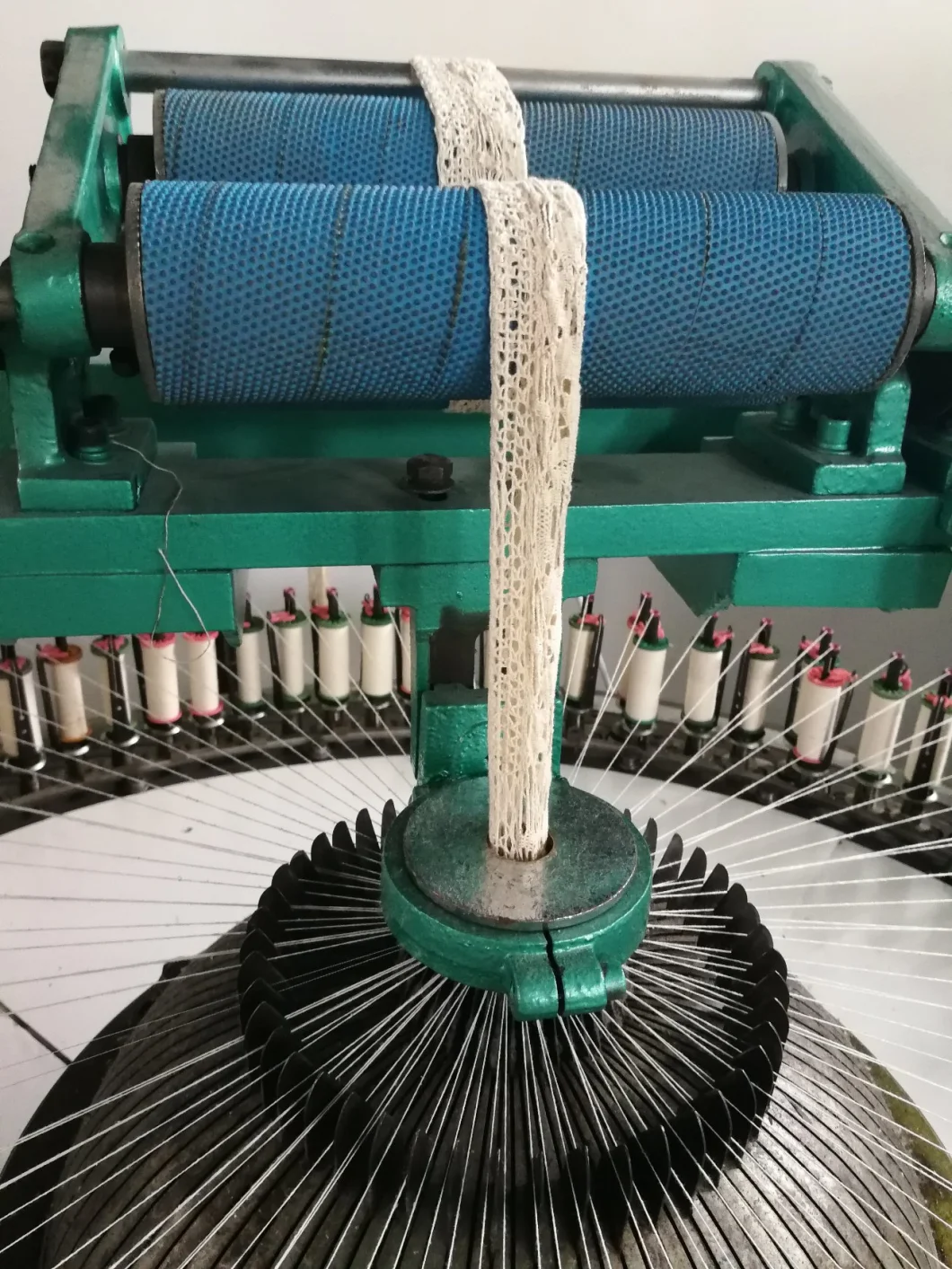

lace braiding machine
Item/parameter/code PTHD64 PTHD96 PTHD128
Spindle number 64 96 128
Gauge 45 55 45 55 45
Size Φ37*91 Φ44*120 Φ37*91 Φ44*120 Φ37*91
Width 5-250 5-250 5-250
Rotor speed 0-260r/min 0-260r/min 0-260r/min
Electrical Engine 1.1KW 1.5KW 2.2KW
Outside size 2150*1320*1850 2450*1550*1850 2650*1750*1950 3020*2050*1950 3350*2200*2000
Weight kg 780 810 1250 1300 2140

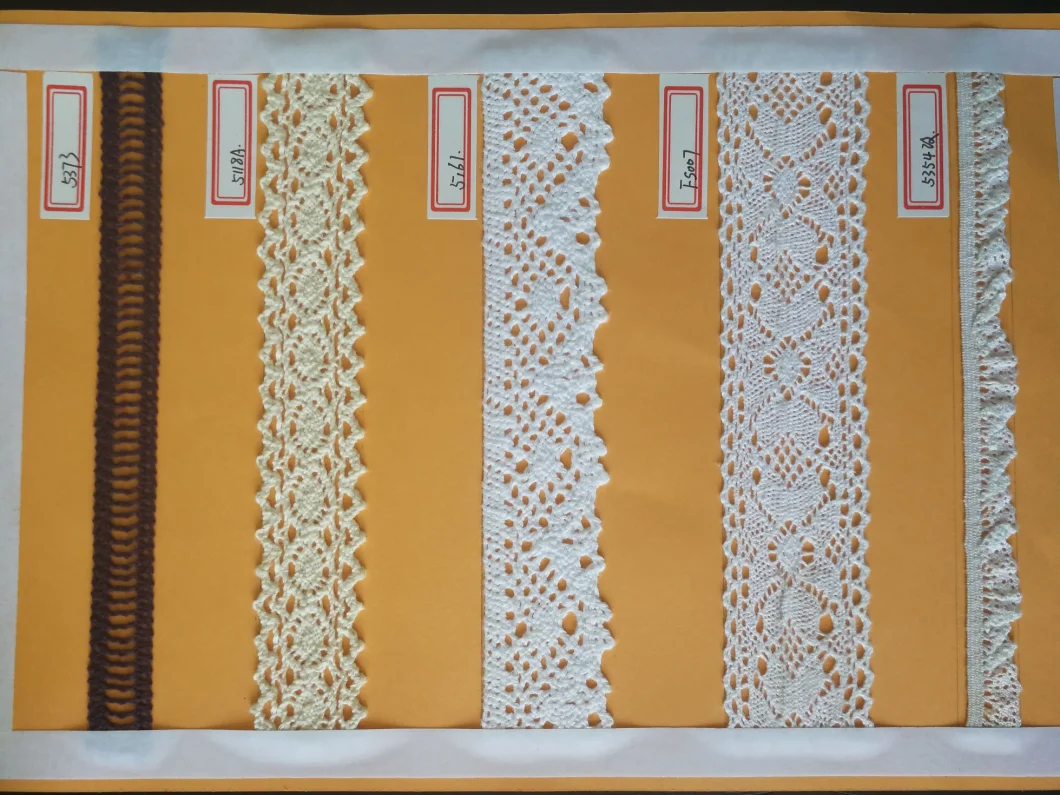

lace braiding machine

Basic technical parameters

Spindle speed: 0~300r / min, frequency control;
Maximum take-up speed: 0.35m / min;
The maximum width of the fabric: 180mm;
No-load noise: 85dB (A);
Bearing temperature rise: 20K;
CPU operating frequency: 33MHZ;
Memory: 32KB;
Input point: 8 points;
Output point: 68 points / 100 points (64 spindles/ 96 spindles);
Micro electromagnet: Operating frequency: 67HZ;
Start suction: 50g;
Machine power consumption: 1.5 / 2KW (64 spindles/96 spindles);
Matched quill: outer diameter: 37.00mm;
Inner diameter: 12.20mm;
Length: 91.00mm.

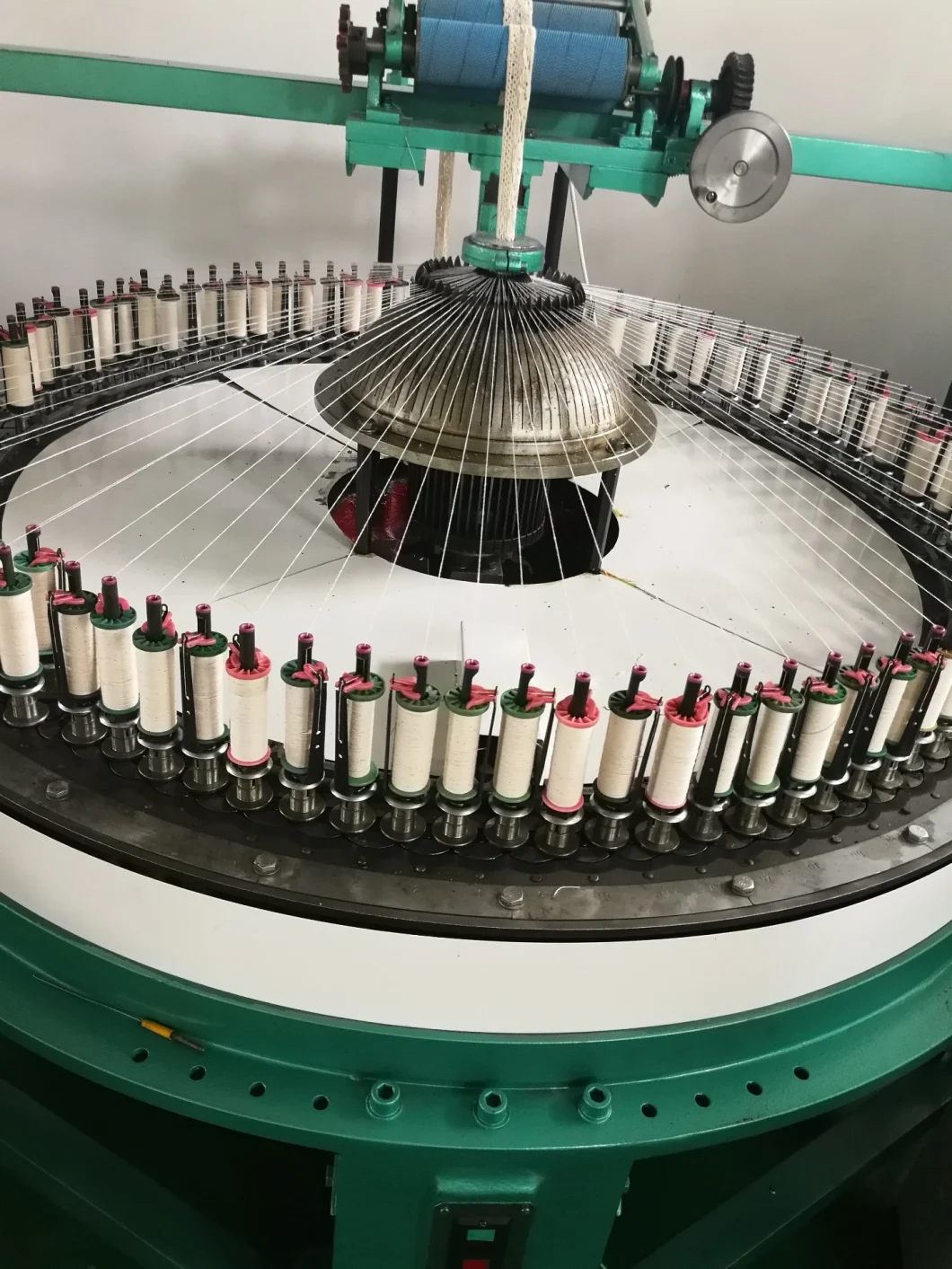

lace braiding machine


lace braiding machine
Use conditions
Power supply voltage: AC 380V ± 10%
Power frequency: 50HZ ± 10%
Ambient temperature: 0 ºC~45 ºC
Ambient humidity: 90% RH or less (no condensation)
Installation environment:
the place free from water droplets, steam, dust and oily dust;
No corrosive, flammable gases and liquids;
No floating dust and metal particles;
Solid foundation without vibration;
No electromagnetic interference around

lace braiding machine
lace braiding machine

Nantong Jielei Machinery Co.,Ltd

 Through the reorganization of assets between Nantong Xinglong Thread Tape Machinery Co., Ltd. And Nantong Jielei Machinery Co., Ltd. Our company has become a national high-tech enterprise; Established in 1954, we now are a specialized manufacturer of knitting machineries with a land of 56, 000 square meters.

Taking "learning advanced technology from world, leading the trend of Chinese weaving industry" as development philosophy, we rely on strong professional skills and strive to develop high-tech products to meet market demand constantly. Up to now, we have become an important force of knitting machinery industry of China to participation in global competition. As the hi-tech product of China and Jiangsu province, our "Xinglong" PTHD type computerized Jacquard Knitting Machine obtained the Second prize of China machinery industry federation, Second prize of scientific and technological progress of Jiangsu province and First prize of Nantong science and technology progress. Due to world-leveled production scale, performance and quality, our products are well sold in Chin and international market.
